In-Line 4 200hp

In-Line 4 200hp

  • Type

    In-Line 4
  • Disp.

    2.8L
  • Weight*

    487 lbs (20" Shaft)
  • Power

    200hp

In-Line 4 200hp Specs

Engine Type: In-Line 4

Displacement: 2.8L

Bore x Stroke: 96 x 96mm (3.78 x 3.78 in)

Prop Shaft Horsepower: 200hp at 5500 RPM

Full Throttle RPM Range: 5000 - 6000 RPM

Alternator Output at W.O.T.: 50 Amp

Compression Ratio: 10.3:1

Fuel Induction System: EFI

Weight*: 220 kg (487 lbs) - 221 kg (489 lb)

Recommended Fuel: Octane 89

Recommended Engine Oil: Yamalube® 4M (See owner's manual)

Recommended Fuel Filtration: Yamaha 10-Micron Fuel / Water Separating Filter (external)

Warranty: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial

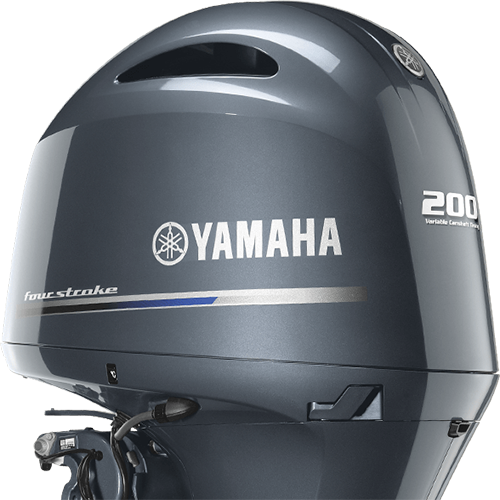

About the In-Line 4 200hp

The lightest DOHC outboard in its class, this I-4 is the perfect, lightweight 200-hp solution for small- to medium-size boats. Plus, it’s the first in-line four compatible with Helm Master®, our fully integrated digital boat control system.

  • Compatible with mechanical controls or digital Command Link Plus® or Helm Master® controls
  • Runs on economical 89 octane
  • Only 487 pounds (20” shaft model)
  • 20” or 25” shaft options (LH rotation available in 25” shaft digital control)
  • 50-amp alternator provides 13 percent more power than V6 3.3-liter F200

* Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller).
