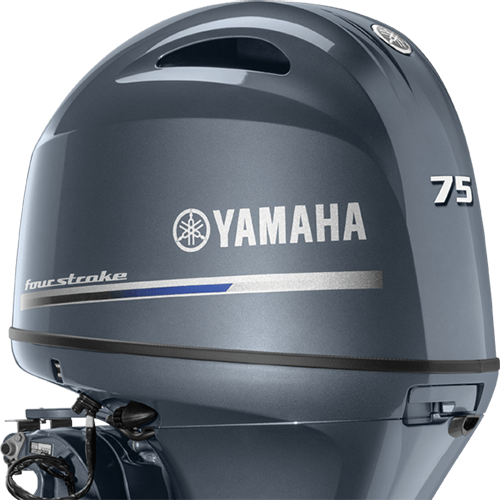

Midrange i4 75hp

Midrange i4 75hp

  • Type

    In-Line 4
  • Disp.

    1.8L
  • Weight*

    353 lbs
  • Power

    75hp

Midrange i4 75hp Specs

Engine Type: In-Line 4

Displacement: 1.8L

Bore x Stroke: 81 x 88.9mm |3.19 x 3.5in

Prop Shaft Horsepower: 75hp at 5500 RPM

Full Throttle RPM Range: 5000 - 6000 RPM

Alternator Output at W.O.T.: 35 Amp

Compression Ratio: 10.0:1

Fuel Induction System: EFI

Weight*: 160kg (353 lbs)

Recommended Fuel: Octane 87

Recommended Engine Oil: Yamalube® 4M (See owner's manual)

Recommended Fuel Filtration: Yamaha 10-Micron Fuel / Water Separating Filter (external)

Warranty: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial

About the Midrange i4 75hp

The all-new 1.8-liter I-4 F75 features a step up in displacement from its previous design. Still, its single-overhead-camshaft with four valves per cylinder keeps it compact and shaves off 13 pounds. Bigger power plus lighter weight equals one thrilling new outboard.

  • Available for mechanical remote or tiller control
  • Only 353 pounds
  • 20” shaft
  • Powerful 35-amp alternator
  • Optional Variable Trolling RPM via the Command Link® tachometer

* Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller).
